Bosch Alternator Diode Test

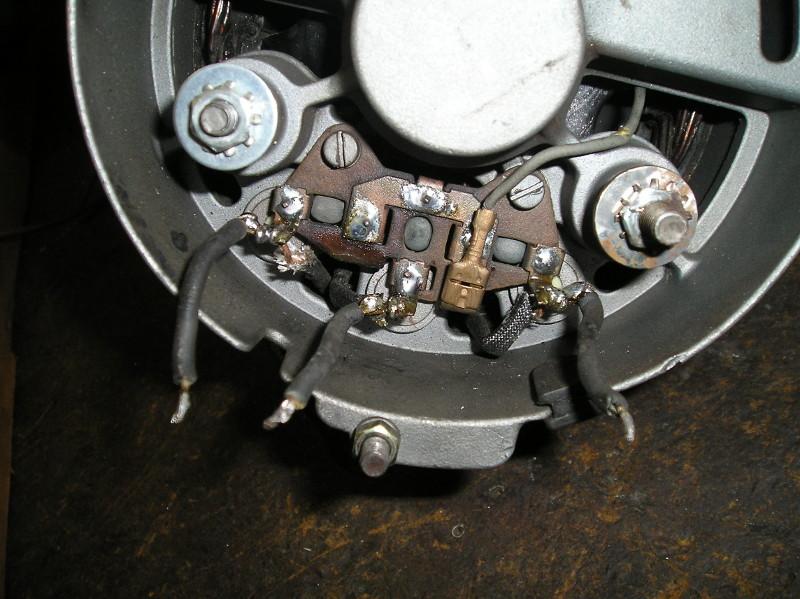

Rectifier diode pack. Learn how to perform a battery load test with a multimeter if you are having starting or charging system problems heres a surefire way to test the integrity of your system click here this information has been concealed for decades by automotive equipment specialists to encourage shop owners and technicians to purchase sophisticated equipment to test for bad alternator diodes.

Volvo Workshop Manuals 780 V6 2849cc 2 8l Sohc B280f 1987

If output is still too low repair or replace alternator.

Bosch alternator diode test. But a charging circuit blown fuse a broken fusible link a failed diode in the alternators rectifier assembly even a worn out bearing will affect charging system operation. This will only work well if the load is in excess of the alternators rating. How to test an alternator part 2.

How to check alternator diode bridge working perfectly or not. Bosch alternator repairing with simple tools. If the alternator fails any test category your customer needs a new alternator.

4 alternator output should equal alternator rated output minus 16 20 amps. A bench test will check the diodes and internal regulator and then tell you if the alternator is capable of producing its rated current and voltage. How to test an alternator testing the voltage regulator diode rectifier and stator.

The best way to identify alternator problems is by conducting a bench test. If reading is 16 20 amps below alternator rating replace regulator and retest. If your output is not within a few amps of the alternators rating then you likely have some bad diodes.

One of the most common problems on an aging alternator arise from worn out brushes. Please try again later. This feature is not available right now.

How to check your car alternator diode with a multi meter. Do not allow voltage to go below 12. They often go in thirds so a 60a alt putting out 20a or 40a in the above scenario could have some blown diodes.
